Console system, Solar PV

FLAT ROOF, SOUTH-FACING

– roof consoles for all types of roof

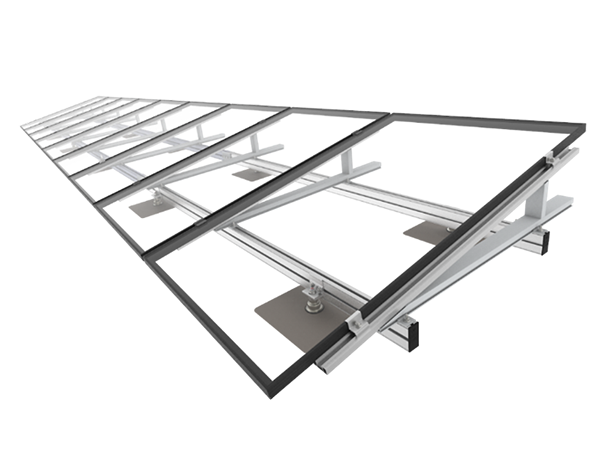

FLAT ROOF, SOUTH-FACING

Choose the ‘south-facing’ solution in projects requiring modules to be facing south.

What type of roof structure is involved?

Select below between warm or cold roof (insulated or uninsulated just below the roof membrane) and then select the type of roof structure involved: concrete, trapezoidal panels, wooden rafters or board-based

Technical data

The design of the South solution is based on the FIXNORDIC console system and has a remarkably high pull capacity, thanks to being directly attached to the building’s structural framework. This means that the wind factor is no longer critical. The console system’s traction capacity is usually three times greater than required.

FIXNORDIC’s unique roof consoles are patented,, and their watertightness has been third-party tested by TÜV Rheinland. In practice, this means that the console system will have the same minimum service life as the roof membrane.

At FIXNORDIC, we deliver not just a reliable console and installation system with thoroughly sealed penetration of the roof membrane, but our technical calculations also ensure that our console systems can withstand the elements, because our calculations are based on each individual installation solution. This means that you, as a FIXNORDIC customer, get the best console system on the market, which includes documentation of your specific system.

FIXNORDIC’s console system is based on aerodynamic testing of wind resistance carried out by RC Ruscheweyh Consult GmbH, and on snow loads of the console system and loads on the roof structure at each individual point of attachment. All calculations comply with Eurocode’s basis for wind calculations, EN1991:1-4, and snow calculations, EN1991:1-3.

Use the right tools to make your work easier

FIXNORDIC has developed and provides a range of tools that make installation easier, safer and more efficient. We provide tools for the specific type of roof and structure.


Check out our Tools and learn more about how they make your job easier

YOU CAN ALSO CONTACT US

We can assist and advise you on our Console Systems for Solar PV.
