Components:

230063

Roof console, double layer
– for double layer SBS roofs

220063

Roof console, single layer
– for roofing foil or felt solution

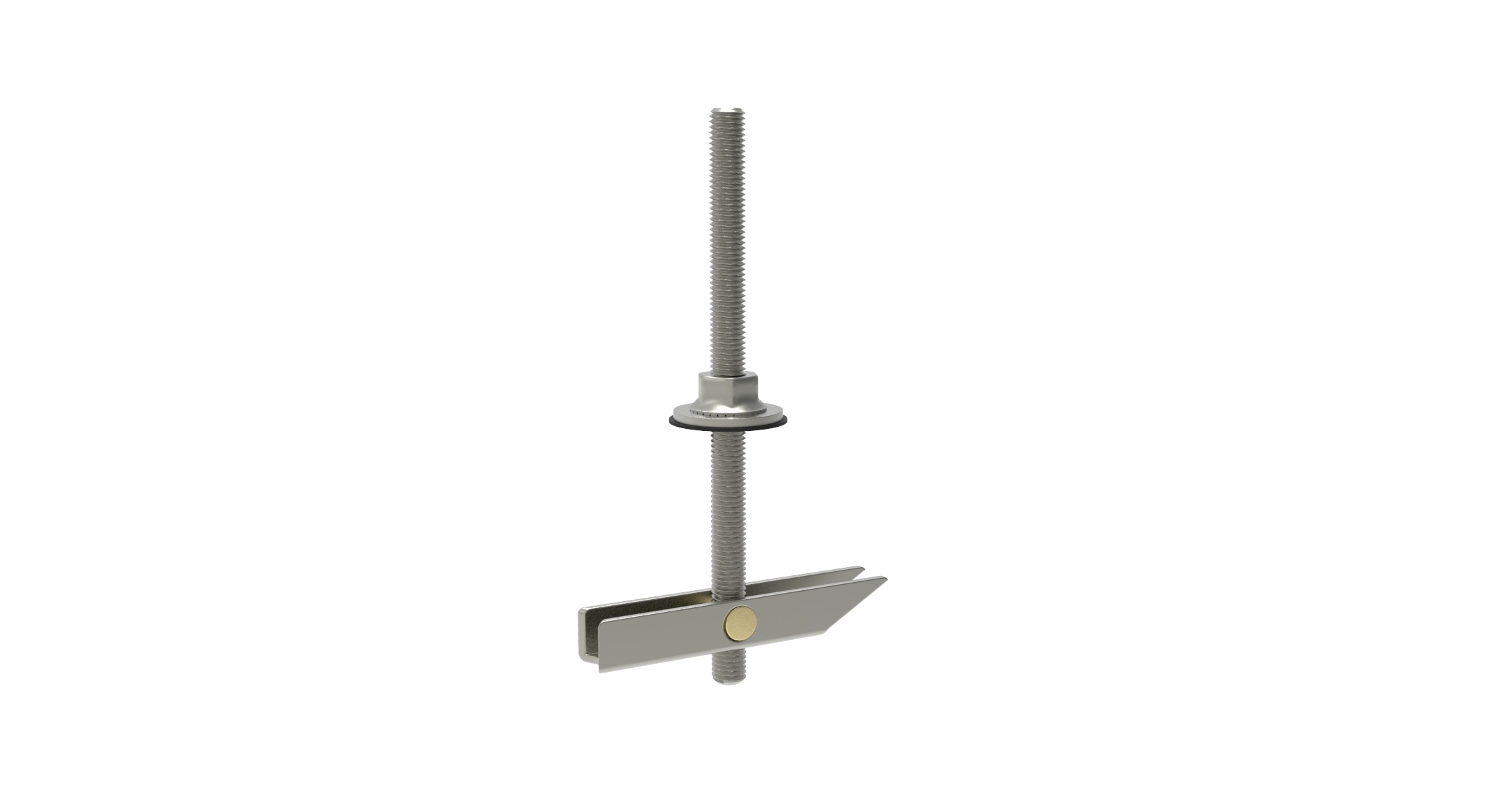

215004 Trapez anchor
M12×200 mm
250084-86 Console adapter, Ø40
240011 Pinbolt, M12×60 mm
250044 Fitting for attachment of load-bearing profile
250012 Load-bearing profile, 40×80×6250 mm
250059 Internal corner, 80x80 mm
250047 End cap for load-bearing profile
250079 Hammerhead bolt
M10 x 30 with locknut

Accessories:

Console System, THERMAL
Flat roofs

WARM ROOF, TRAPEZOIDAL PANELS

The console system mounted on a flat roof is a roof console that transfers all the forces of wind or snow loads directly into the roof’s structure. This means that no strain is exerted on the roof membrane at any time, thereby ensuring its originally designed watertightness.

Technical data

A single or double layer roof console is used on roofs surfaced with a bitumen membrane.

Use a single layer roof console on roofs surfaced with a foil membrane.

When submitting an order, it is crucial to specify the type of membrane used, so we ensure that the membrane is the same as the roof’s existing membrane.

Solution components:

  • Roof consoles for installation in the roof's structural framework
  • A frame system on which the manufacturer-specific triangles are to be mounted

FIXNORDIC offers separate pipe flashing to ensure the leading-in of pipes through a roof.

Do you need advice and guidance?

Every job is unique and requires the right calculations to establish a long-term solution for your roof surface.
We love excelling in this field and knowing that we can stand by our calculations and quality products, both now and in the future.

We handle ‘standard solutions’, but also love a good challenge. So if you have a task that needs implementing, we will gladly help you find the best solution for your next project.


Read more about advice, guidance and structural engineering

Full warranty for the entire system.

At FIXNORDIC, we don’t just supply products. We supply safe, reliable systems for penetrating the roof surface that are resistant to the elements. This is guaranteed by our unique patents, third-party testing and our own technical calculations.
